In the field of mold design, choosing a suitable software is crucial. It not only improves work efficiency, but also directly affects design quality and innovation capabilities. This article will compare the five most popular mold design software on the market to help you find the design tool that suits you best!

A quick note: UG is currently the best in the world!!! CAD randomly kills a bunch of clumsy people!!!

AutoCAD

  1. Introduction

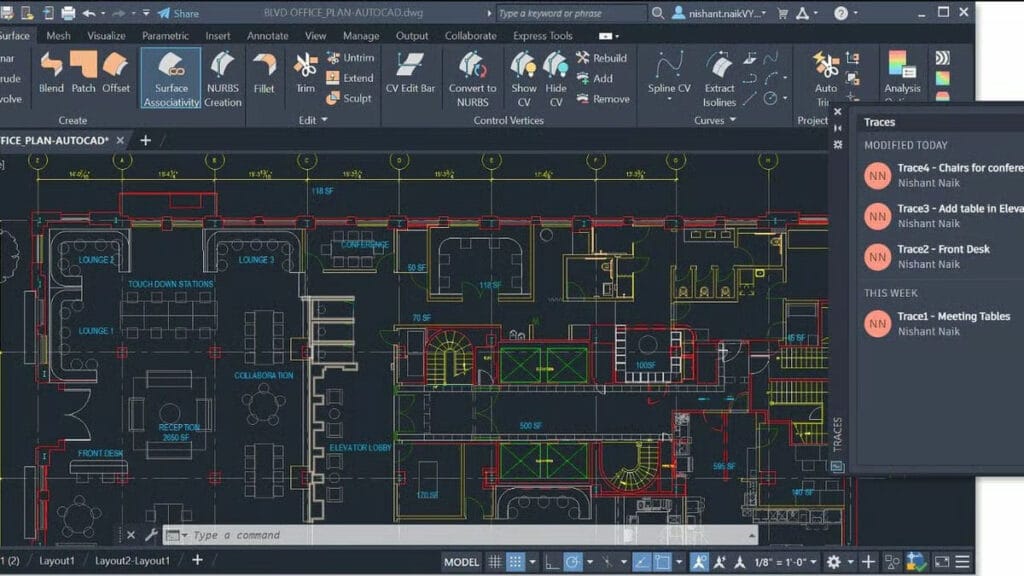

AutoCAD is a software widely used in 2D drawing and basic 3D design. It is the preferred tool for many designers to get started.

  1. Advantages
  • Friendly interface and easy operation.
  • Powerful drawing capabilities, suitable for preliminary design and sketching.
  • Has a broad user base and abundant communication and learning resources.
  1. Disadvantages
  • The 3D design function is relatively weak.
  • For complex mold design, the efficiency may not be as good as professional software.

SolidWorks

  1. Introduction

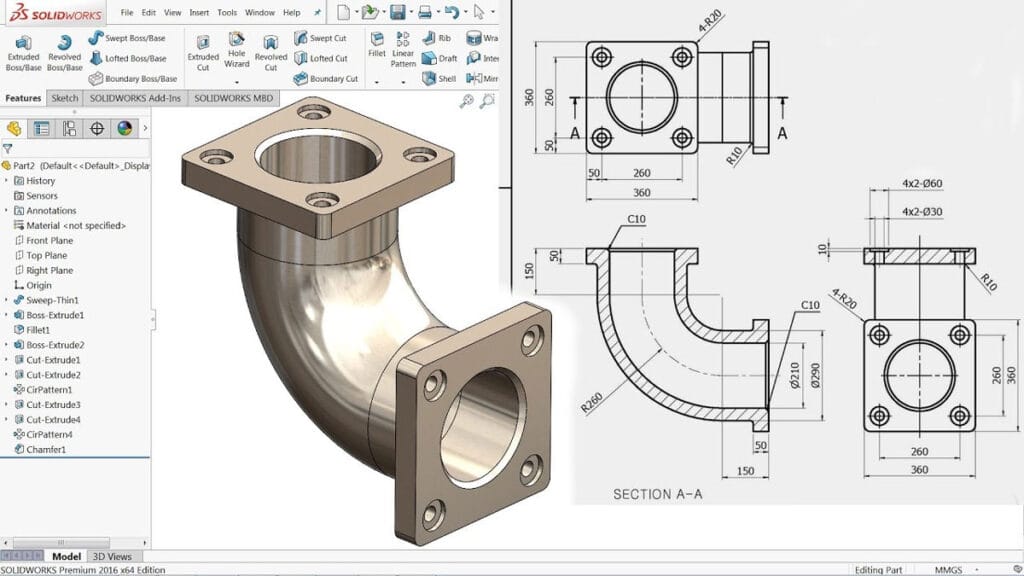

SolidWorks is a software focused on 3D mechanical design and is widely used in product design and mold design.

  1. Advantages
  • Parametric design, easy to modify and optimize.
  • Provides a rich parts library and plug-ins with strong extensibility.
  • The user interface is intuitive and the learning curve is relatively gentle.
  1. Disadvantages
  • For large and complex designs, the software may run slightly slower.
  • Advanced features require additional plugin purchases.

CATIA

  1. Introduction

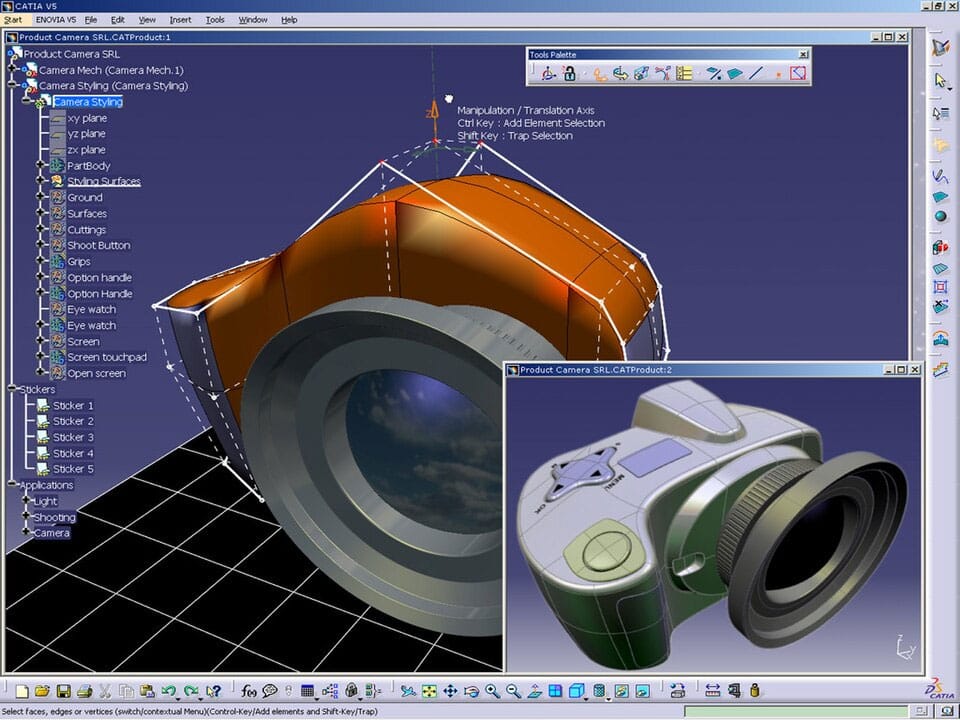

CATIA is a high-end CAD/CAE/CAM software developed by Dassault Systรจmes and is used by many large manufacturing companies and high-end R&D institutions.

  1. Advantages
  • Very powerful, suitable for complex mold design.
  • High integration, supporting the entire process from design to production.
  • Excellent simulation and analysis capabilities for advanced engineering calculations.
  1. Disadvantages
  • Expensive, which is costly for small and medium-sized enterprises.
  • It is difficult to learn and requires professional training.

UG (NX)

  1. Introduction

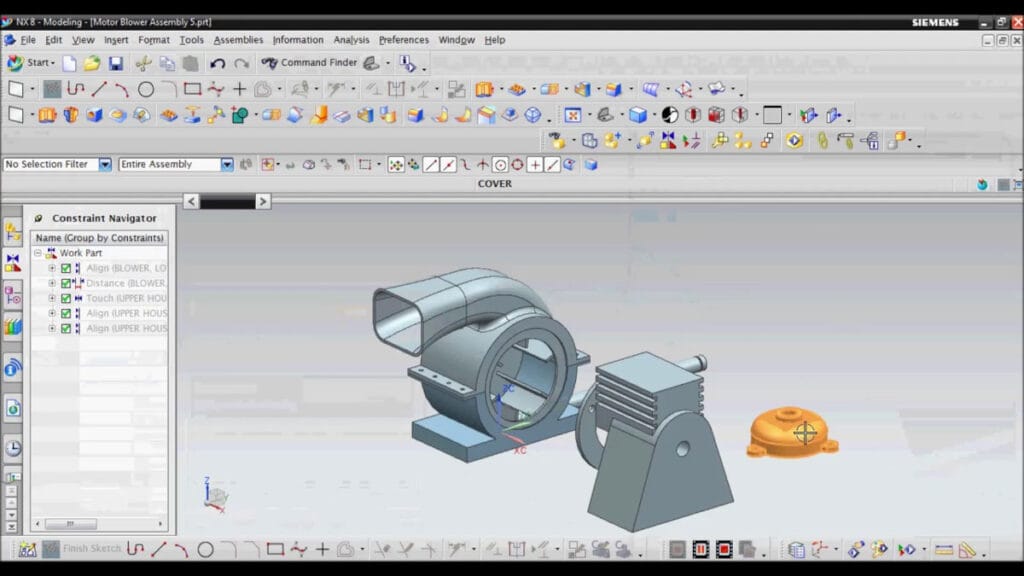

UG (now renamed NX) is a comprehensive CAD/CAM/CAE software from Siemens PLM Software, widely used in mold, automobile, aerospace and other industries.

  1. Advantages
  • Powerful surface modeling capabilities, suitable for complex mold design.
  • Highly integrated, supporting multi-disciplinary collaborative design.
  • High stability and reliability, suitable for large-scale engineering applications.
  1. Disadvantages
  • The interface is complex and difficult for beginners to get started.
  • The software is bulky and has high hardware requirements.

Conclusion

When choosing mold design software, you should consider the following factors:

  • Design requirements: Choose the software based on the complexity and type of the design.
  • Operating habits: Choose software with a friendly interface and operating habits that suit your own.
  • Cost budget: Consider the purchase cost of the software and subsequent maintenance costs.
  • Learning resources: Choose software with rich learning resources and community support.

Each software has its own unique advantages and limitations, and the final choice should be based on your specific needs and usage scenarios.
